Generic packing tape exposes your supply chain to invisible risks, leaving high-value shipments vulnerable to pilferage and counterfeiting.
Custom printed security tape acts as a specialized Tamper-Evident mechanism that uses Process Exclusivity to protect your brand. By embedding your identity into both the surface ink and the adhesive structure itself, you create a security layer that cannot be replicated without access to industrial-grade manufacturing equipment.
Navigating the procurement of this product can be complex due to technical terms like MOQ and vector requirements. Let's break down the manufacturing realities behind these terms to help you make an informed decision.
Surface Printing vs. Residue Text: Which Customization Tech Best Fits Your Brand?
Do you simply want brand awareness on top of the box, or do you need a forensic-level guarantee that the tape hasn't been lifted and replaced?
Surface Branding puts your logo on the top layer for visual recognition, while Structural Security modifies the adhesive chemistry to leave a custom "VOID" or "User Defined" message on the box. While surface printing is standard, customizing the residue text offers true Process Exclusivity because it forces the counterfeiter to replicate not just the ink, but the complex adhesive coating process itself.
Defining Process Exclusivity
To understand what you are buying, we must look deeper than the artwork. Customization happens at two distinct levels of the tape's anatomy.
Level 1: Surface Branding (Visual)
This is comparable to printing a label. We use Flexographic Printing to apply ink to the top of the polyester film.
- Purpose: Marketing and quick identification.
- Security Level: Low. A thief can buy clear tape and print your logo on it using basic equipment.
Level 2: Structural Security (Chemical)
This is where the real value lies. We physically modify the Release Liner and the adhesive application rollers to create a specific pattern (like your company name) that remains on the box when peeled.
- Purpose: Anti-counterfeiting and forensic evidence.
- Security Level: High. Replicating this requires an industrial coating line, not just a printer. This "Process Exclusivity" is what prevents organized crime from faking your shipments. You are not buying a print; you are buying a unique chemical structure.
Why Is Minimum Order Quantity (MOQ) Crucial for Factory Production Efficiency?
You might wonder why we require an MOQ of 500 or 1,000 rolls when you only have a small project, feeling that this requirement is an arbitrary sales hurdle.
MOQ is strictly dictated by Startup Calibration Waste. Unlike digital printing where the first copy is perfect, industrial adhesive coating machines generate significant material waste during the initial setup phase as they calibrate pressure and temperature. The MOQ ensures that the volume of "good" tape produced is sufficient to absorb the cost of this inevitable startup scrap.
The Economics of Calibration

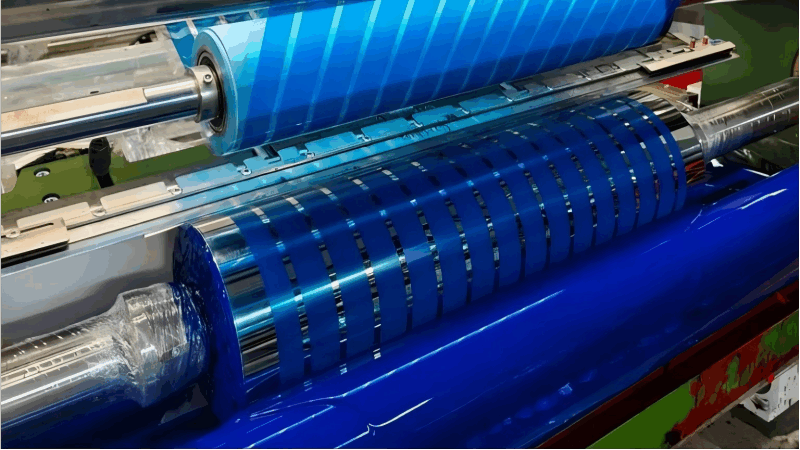

When clients ask to lower the MOQ, I explain the physics of the coating line. We don't make tape roll-by-roll; we coat "Jumbo Rolls" that are over 1 meter wide and thousands of meters long.
The Startup Phase
Before the machine reaches a stable "Steady State" where the "VOID" pattern releases perfectly, we must run hundreds of meters of film to adjust the tension and adhesive thickness.
- Calibration Waste: This initial material is chemically unstable and must be discarded.
- Fixed Cost: This waste happens whether we produce 100 rolls or 10,000 rolls.
Why Small Runs Cost More
If we spread the cost of that fixed "Startup Calibration Waste" over just 50 rolls, the price per roll would be astronomical. The 500-1000 roll MOQ is the "break-even point" where the unit price becomes commercially viable for you.
| Production Phase | Small Order (50 Rolls) | Standard Order (1000 Rolls) |
|---|---|---|
| Setup Waste | High % of Total Material | Negligible % of Total Material |
| Machine Setup Time | 4 Hours | 4 Hours |
| Running Time | 10 Minutes | 4 Hours |
| Efficiency Result | Too Costly | Optimal |

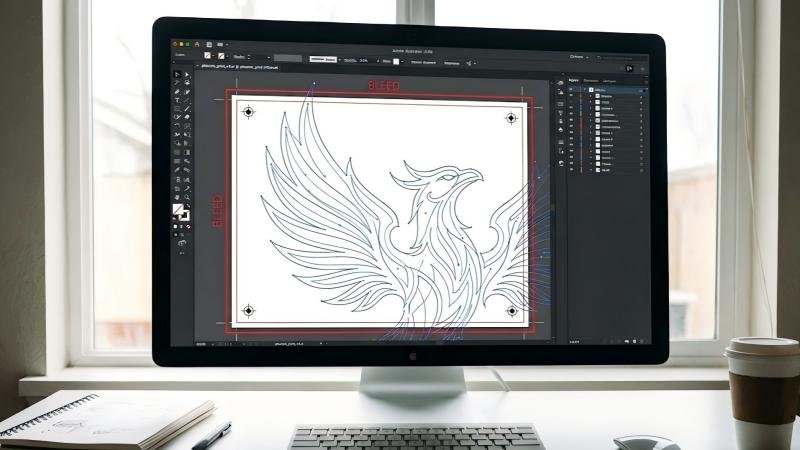

How Should You Prepare Vector Artwork Files for Optimal Print Results?
Are you worried that your complex logo will look blurry or that the text will be cut off at the edge of the tape?
We require Vector Graphics (AI, PDF) not just for clarity, but to ensure Mechanical Precision of Multi-color Registration. Since the tape is printed on a wide web and then sliced by high-speed blades, vector files provide the mathematical coordinates needed to prevent "bleeding" or misalignment during the violent slitting process.
The Role of Mechanical Precision
In security tape production, "printing" is only half the battle. The dangerous part is "slitting."
Why Raster Images Fail
A PEG or PNG image is made of pixels. If the slitting blade hits a pixelated edge, the ink can crack, or the visual border can look jagged.
The Need for Trapping
Vector files allow us to perform "Trapping"—a technique where we slightly overlap adjacent colors.
- High-Speed Stability: As the film moves through the press at high speeds, it stretches slightly. Without trapping, you would see white gaps between your logo colors.
- Slitting Tolerance: We use the vector paths to define a "Safe Zone" away from the edge. The razor blades that slit the Jumbo Roll into 50mm strips have a tolerance of +/- 1mm. Vector art allows us to position your logo precisely so the blade doesn't slice through your phone number or QR code. This Mechanical Precision prevents quality complaints.
Understanding the Timeline: From Plate Making to Final Slitting and Delivery
Are you dealing with a tight deadline and confused about why "simple tape" takes weeks to manufacture?
Security tape is a Make-to-Order industrial product that follows a strict chemical timeline, specifically the Curing Phase. Rushing the process from plate making to slitting can result in a malfunction where the tamper-evident message fails to transfer, so patience is a technical necessity.
The "Curing" Bottleneck
Purchasers often try to rush the lead time, but chemistry cannot be rushed.
Step 1: Plate Making (Hardware)
Time: 5-7 Days.
We must engrave copper cylinders for your custom "VOID" pattern. This is physical metalworking.
Step 2: Critical Curing (Chemistry)
Time: 2-4 Days.
After the adhesive is coated onto the film, the Jumbo Roll must sit in a temperature-controlled room (40-50°C).
- Why wait? The chemical bond between the film, the release agent, and the adhesive needs to stabilize.
- The Risk: If we slit the tape too early (before it is cured), the "VOID" message might not separate cleanly when you confirm the sample. The tape might just peel off like regular tape. We enforce this waiting period to bolster your security.

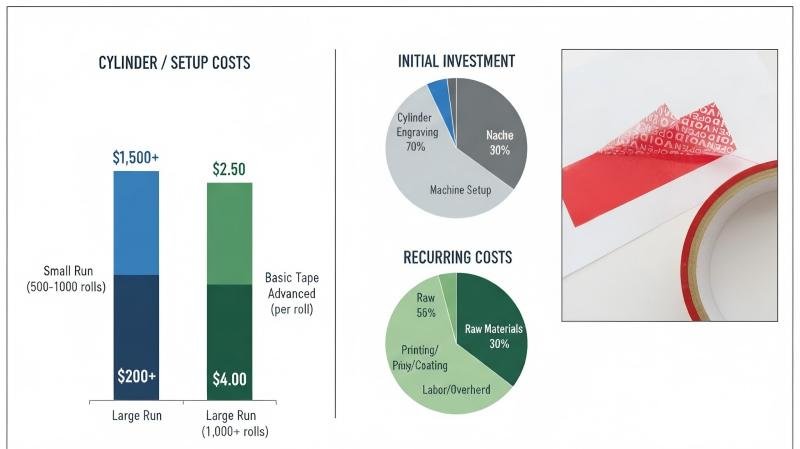

Cost Breakdown: How Colors and Dimensions Impact Your Custom Tape Quote
Do you want to know how to engineer your tape design to fit a specific budget without sacrificing security?
The price of custom tape is driven by Cylinder Tooling Costs and Material Utilization Efficiency. By understanding how dimensions and color complexity impact the quote, you can optimize your specifications to avoid paying for waste material.
Optimizing Cylinder Costs
Every unique feature adds a physical cylinder to the machine.
- Print Cylinders: One distinct cylinder for every color in your logo (e.g., Red, Blue, Black = 3 Cylinders).
- Residue Mold: One dedicated cylinder for the custom "VOID" message.
- Tip: Reducing your logo to 1 or 2 spot colors significantly drops the upfront investment.
Material Utilization Strategy
Tape is slit from a master Jumbo Roll, usually 1000mm wide.
The "Waste" Factor
If you order a non-standard width, you pay for the unused scrap.
- Standard 50mm: 1000mm ÷ 50mm = 20 Rolls. (0% Waste).
- Custom 60mm: 1000mm ÷ 60mm = 16 Rolls (960mm used). (40mm Waste).
- The Outcome: You pay for that 40mm of waste. Sticking to standard widths (48mm, 50mm, 72mm) ensures you are paying only for the tape you use, maximizing your budget efficiency.
Conclusion
Custom printed security tape is not just packaging; it is a layer of chemical and visual protection. By respecting the Startup Calibration Waste that drives MOQs and ensuring your artwork supports Mechanical Precision, you can navigate the manufacturing process effectively.
